CrossRail System
The K2 End Clamp is a self-leveling end clamp that is compatible with all K2 Systems.
This conduit clamp kit is made to be attached directly onto our rails. Kitted with a t-bolt set it create an easy and quick installation to lay down conduit.
The Dynobond 8" offers simple module-to-module row bonding, with a clean aesthetic hiding bonding hardware under the array.
The CrossRail 44-X may be K2's smallest and lightest rail profile, but it is just as strong as the 48-X.
The CrossRail 44-X may be K2's smallest and lightest rail profile, but it is just as strong as the 48-X.
Aluminum bracket and stainless steel hardware optimized for corrugated roofs.
CrossRail 48-XL is an very strong rail profile designed for areas with extreme weather conditions.
CrossRail 48-XL is an very strong rail profile designed for areas with extreme weather conditions.
The CrossRail 80 is K2's largest rail profile. It is predominately used for the Ground Mount System.
All-in-one mount and splice kit with K2 EverSeal preassembled on the base. Comes with one T-Bolt set and 2 self drilling lag screws.
All-in-one mount and splice kit with K2 EverSeal preassembled on the base. Comes with one T-Bolt set and 2 self drilling lag screws.
Aluminum bracket and stainless steel hardware, compatible with ribbed panels ranging from 0.75" - 3.00".
The K2 Flex Foot is a versatile roof attachment that is compatible with nearly all roof types and can be installed to the rafter or decking.
The K2 Flash Comp Kit is K2's very own composition shingle roof attachment. It is feature packed with redundant waterproofing.
The K2 Flash Comp Kit is K2's very own composition shingle roof attachment. It is feature packed with redundant waterproofing.
The EverFlash eComp Kit is a composition shingle roof flashing that is compatible with all K2 CrossRail systems.
The EverFlash eComp Kit is a composition shingle roof flashing that is compatible with all K2 CrossRail systems.
The EverFlash eComp Kit is a composition shingle roof flashing that is compatible with all K2 CrossRail systems.
The EverFlash eComp Kit is a composition shingle roof flashing that is compatible with all K2 CrossRail systems.
K2 Systems offers the Flat Tile Hook X Kit, w/K2 EverSeal. Our EverSeal technology offers a quick and easy installation to save you install time.
The Tile Hook 3S is a two piece adjustbale hook. Its base has three levels of height adjustability with 5.5' of east/west adjustability. The top includes a spot to attach an L-Foot.
K2 Systems offers the USH, 9", Base Kit, w/K2 EverSeal. Pre-installed with EverSeal for a quick and easy application.
K2 Systems offers the USH, 9", Base Kit, w/K2 EverSeal. Pre-installed with EverSeal for a quick and easy application.
K2 Systems offers the USH +2, 5.5" Base Kit, w/K2 EverSeal. The EverSeal is pre-installed and ready for installation.
The EverFlash Tile Replacement Flashing is feature packed and is available in Flat, S and W tile profiles.
The EverFlash Tile Replacement Flashing is feature packed and is available in Flat, S and W tile profiles.
The EverFlash Tile Replacement Flashing is feature packed and is available in Flat, S and W tile profiles.
The K2 Tile Hood is a deck flashing that gives extra waterproofing protection by completely covering the hook penetrations.
The PowerClamp is K2's roof attachment solution for standing seam metal roofs. This standard version uses two set screws.
The T-Foot X is K2's roof attachment solution for pitched or low slope roofs. The kit includes the T-Bolt set to attach to the rail.
The Big Foot is essentially a large L-Foot that provides more height adjustability. It is also compatible with a 3" Chem Link E-Curb and comes with a clip to help center your mount into the curb.
K2's Universal Mid Clamp is compatible with all our systems.
K2's Universal Mid Clamp is compatible with all our systems. This uses the legacy 6mm allen bolt.
K2's Universal Mid Clamp is compatible with all our systems.
K2's Universal Mid Clamp is compatible with all our systems.
K2's Universal Mid Clamp is compatible with all our systems.
K2's Universal Mid Clamp is compatible with all our systems.
K2's updated mid clamp has the self-leveling base that was created from our innovative South Face End Clamp.
K2's Universal Mid Clamp is compatible with all our systems. This uses the legacy 6mm allen bolt.
K2's updated mid clamp has the self-leveling base that was created from our innovative South Face End Clamp.
The Yeti Clamp 2.0 is K2 Systems' very own hidden end clamp, with enhanced aesthetics and simple installation.
The Yeti Clamp is K2 Systems' very own hidden end clamp.
K2's Universal End Clamp is our standard end clamp that is compatible with all our systems.
K2's Universal End Clamp is our standard end clamp that is compatible with all our systems.
K2's Universal End Clamp is our standard end clamp that is compatible with all our systems.
K2's Universal End Clamp is our standard end clamp that is compatible with all our systems.
CrossRail System
The CrossRail System allows for a fast and simple installation with K2’s preassembled universal components. It is a flexible system that can be installed on composition shingle, tile and standing seam roofs. The CrossRail is the base of many of our systems. With just two innovative components you can switch from the classic dual rail system to a Tilt Up or Shared Rail System.
CrossRail System
Areas of application

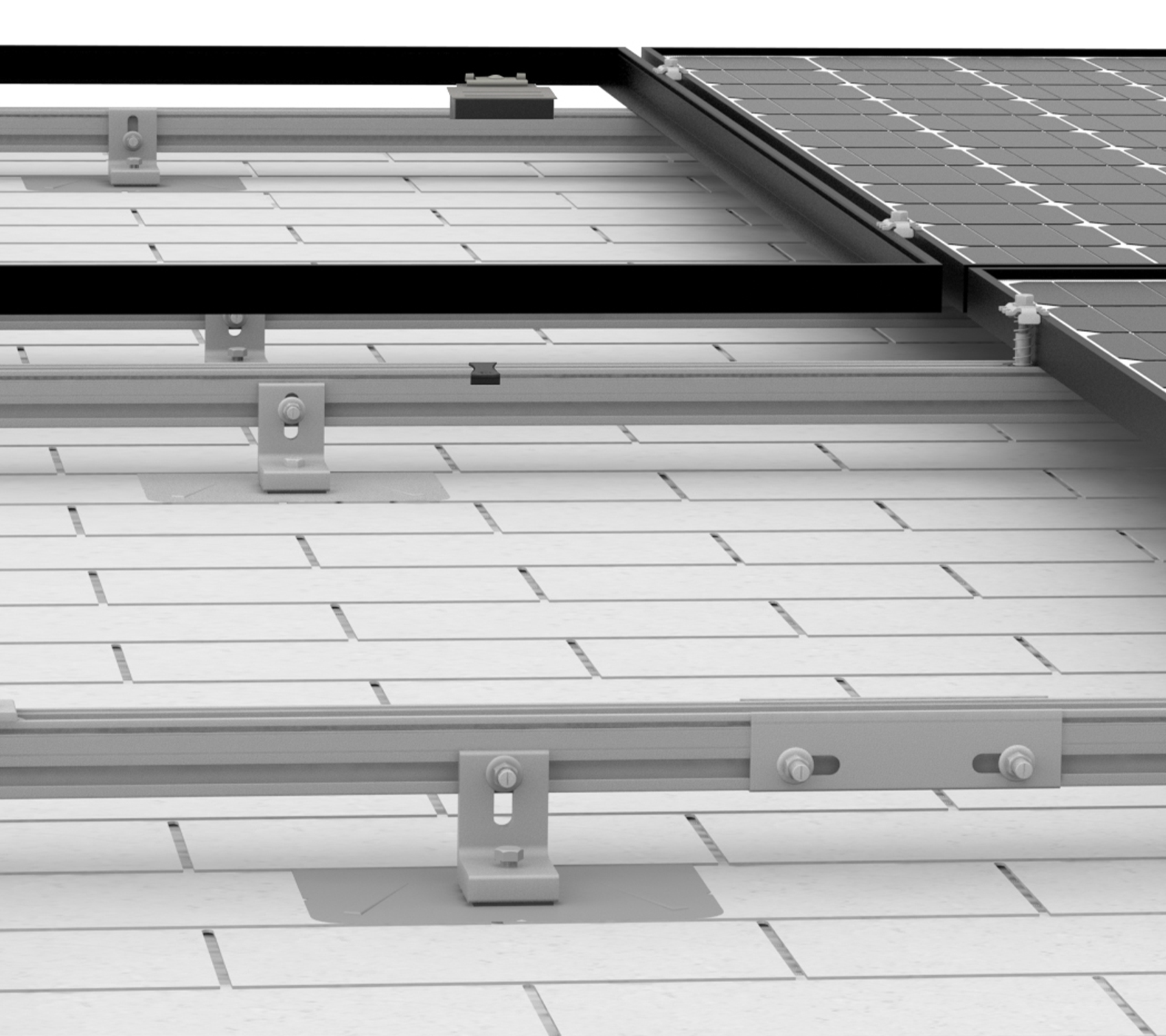

We offer traditional metal flashing as well as non-metal flashings that are compatible with all composition shingle roof types. Standard metal flashings require installing into the rafters, while our EverSeal options such as the Splice Foot and Mini Foot XL have the flexibility to be installed into the decking.
We offer a variety of tile hook options that are compatible with Flat, S and W-Tile roofs. Our Tile Hook 3S and Flat Tile Hook are more robust for extreme weather conditions. Our Flat Tile Hook X and Universal Hooks offer more flexibility and also are available with K2 EverSeal preassembled on the base.

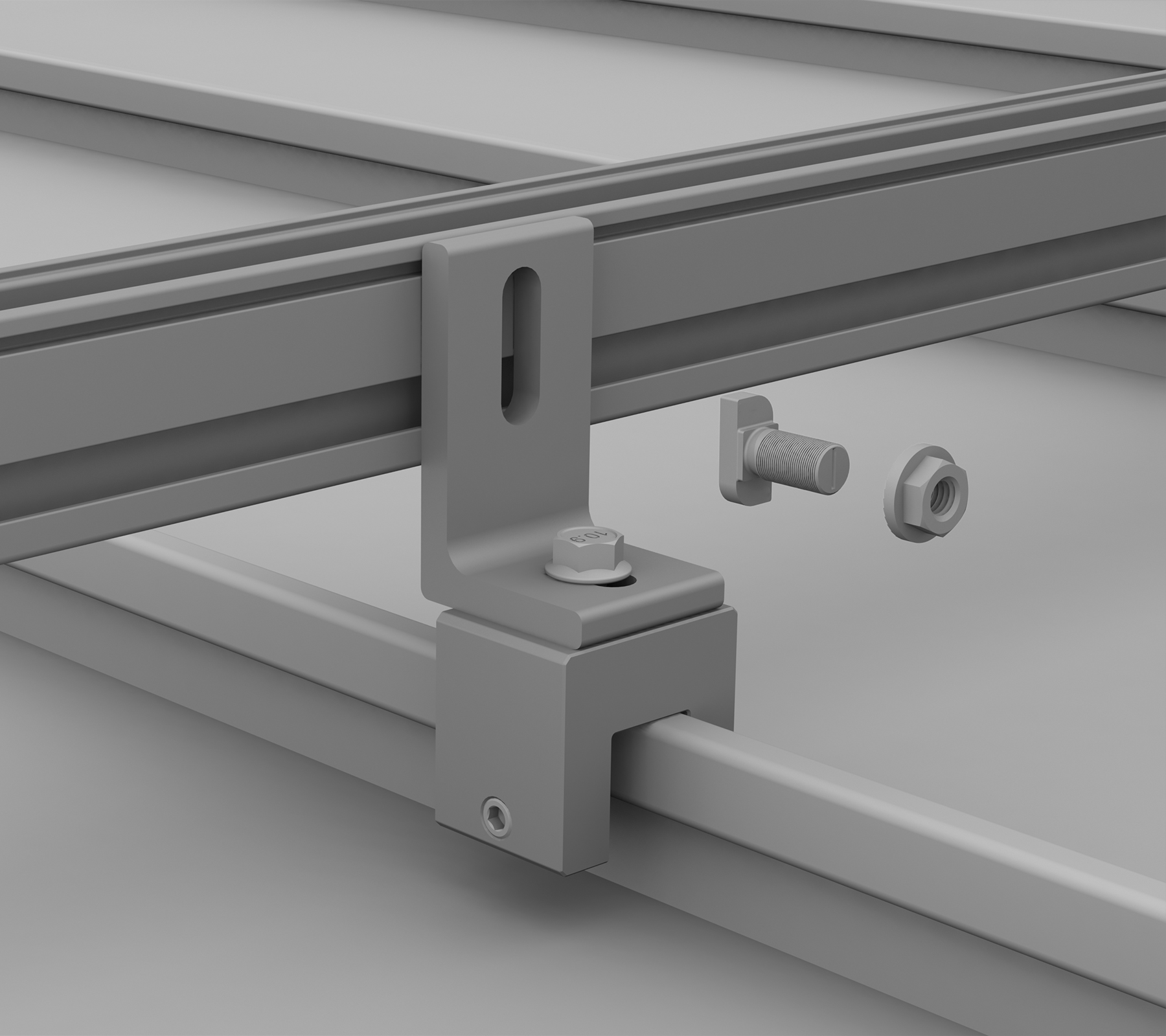

You can attach the CrossRail System to a standing seam metal roof using either of our Standing Seam PowerClamps. They are available in Mini and Standard sizes. The mini has 1 set screw while the standard has 2.
CrossRail System
Technical data
| Rail Type | |
|---|---|
| CrossRail 44-X, Mill/Dark | |
| Material | 6000 Series Aluminum |
| W = width [mm] | 39 |
| H = height [mm] | 44 |
| Lengths [in] | 166", 180" |
| Applicable Roof Types | Composition shingle, tile, flat tile |
| CrossRail 48-X, Mill/Dark | |
| Material | 6000 Series Aluminum |
| W = width [mm] | 39 |
| H = height [mm] | 48 |
| Lengths [in] | 166", 180" |
| Applicable Roof Types | Composition shingle, tile, flat tile |
| CrossRail 48-XL, Mill/Dark | |
| Material | 6000 Series Aluminum |
| W = width [mm] | 39 |
| H = height [mm] | 48 |
| Lengths [in] | 166", custom |
| Applicable Roof Types | Composition shingle, tile, flat tile |
| CrossRail 80, Mill/Dark | |
| Material | 6000 Series Aluminum |
| W = width [mm] | 39 |
| H = height [mm] | 80 |
| Lengths [in] | 168", custom |
| Applicable Roof Types | Composition shingle, tile, flat tile |
CrossRail System
Downloads
CrossRail System - Data Sheet
Torque Flyer
CrossRail System
Videos
CrossRail System
K2 Base: Easy, fast and safe planning
Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs. Our free planning tool K2 Base has a dashboard for efficient project management. Google Maps integration and graphic drawing tools support you in planning and make it easier.
