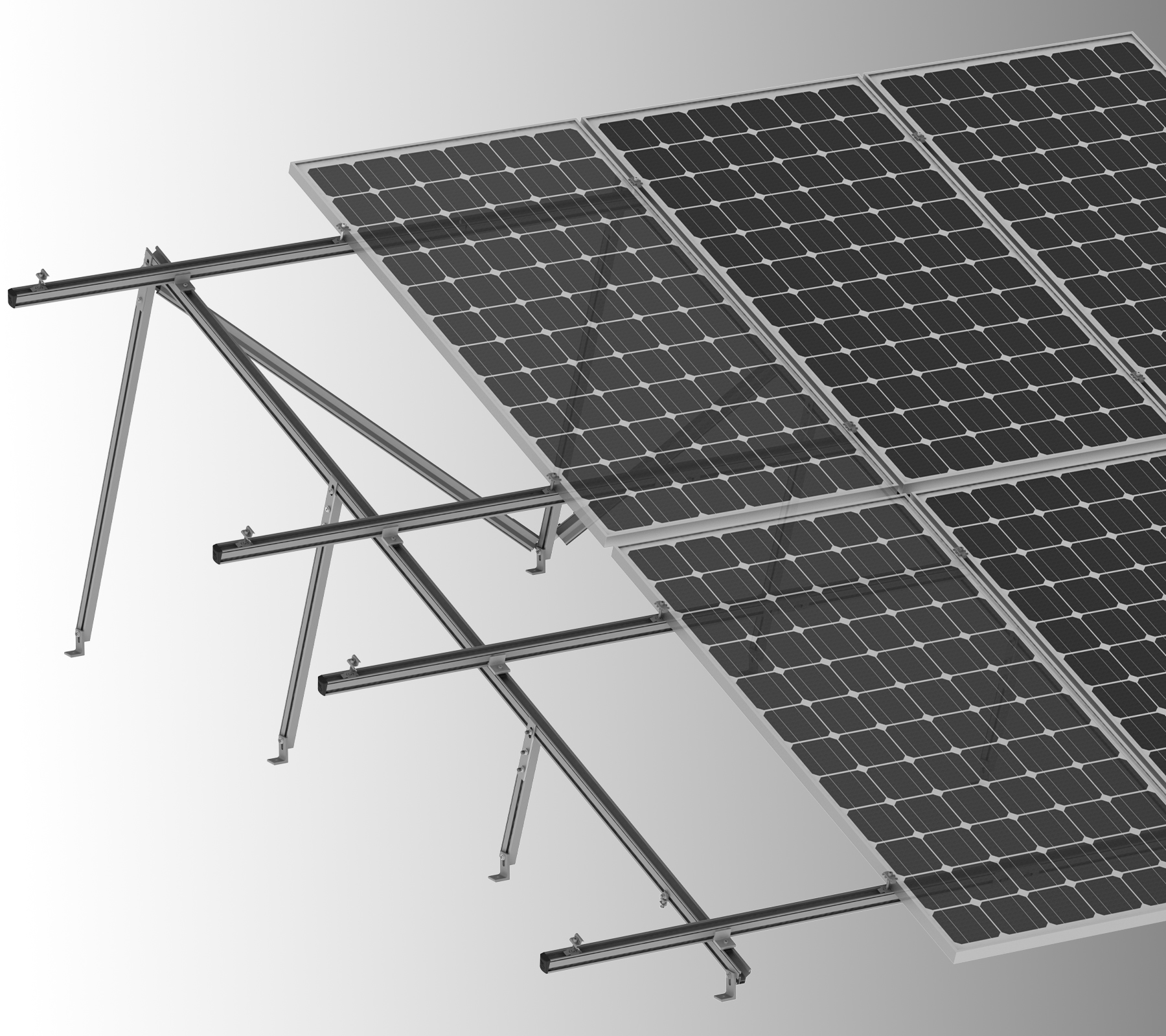

CrossRail Tilt Up Multi Row System

Our Tilt Up Multi Row System is a two row tilted system. It is for virtually all roof types including flat, low slope and steep slope. It is designed to give the installer flexibility with multiple degrees of tilt (7 to 25) and reduced part count. It is a single rail type for the entire system, including the tilt legs which reduces material waste.. It is super easy and quick to install.

Areas of application

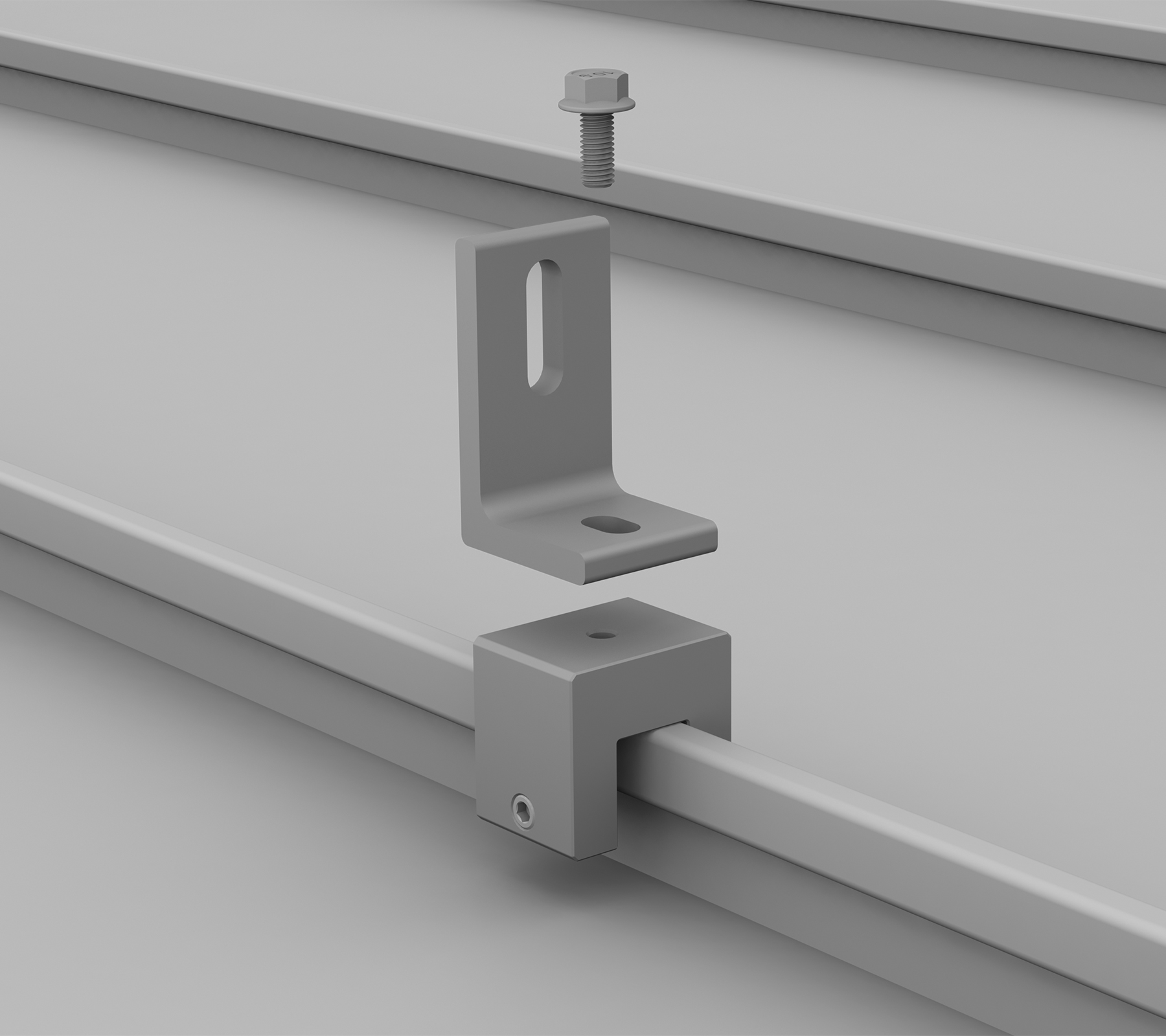

You can attach the CrossRail Tilt Up Multi Row System to a standing seam metal roof using either of our Standing Seam PowerClamps. They are available in Mini and Standard sizes. The mini has 1 set screw while the standard has 2.

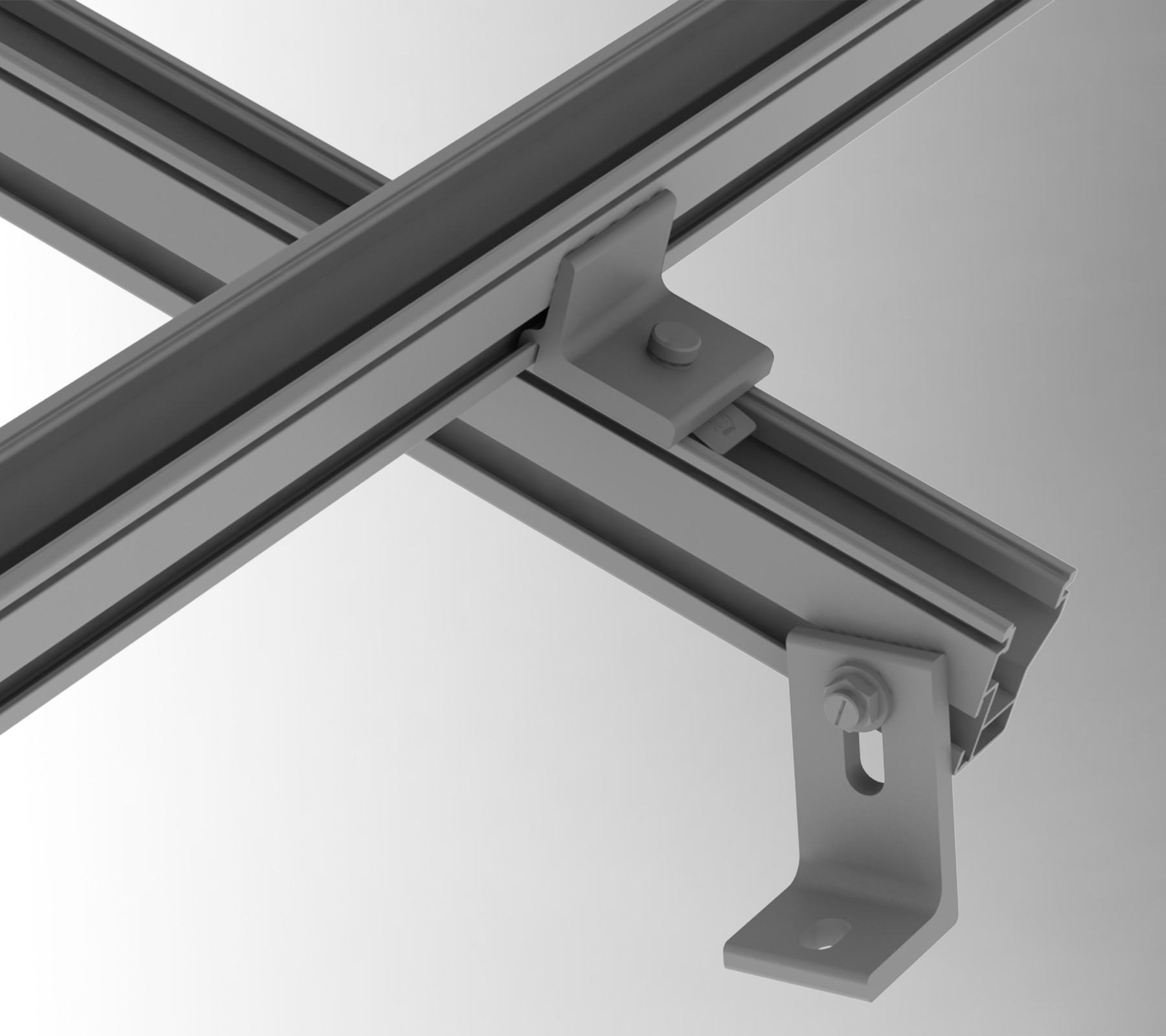

There are a variety of roof attachments to choose from when installing the CrossRail Tilt Up Multi Row System to flat roofs. You can simply install a standard L-Foot, or we offer the T-Foot X and Big Foot with are essentially longer L-Feet to provide more height adjustability.

The CrossRail Tilt Up Multi Row System is adaptable to be installed into the ground.

Technical Data

Rail Type
CrossRail 48-X, Mill/Dark
Material 6000 Series Aluminum
W = width [mm] 39
H = Height [mm] 48
Longitud [Inches] 166", personalized
Roof Compatibility Concrete, Flat Roofs
CrossRail 48-XL, Mill/Dark
Material 6000 Series Aluminum
W = Width [mm] 40
H = Height [mm] 48
Longitud [Inches] 166", personalized
Roof Compatibility Concrete, Flat Roofs
